KIT OF 8 TOOLS FOR SLOTTING MACHINES REV

8 TOOLS KIT FOR SLOTTING MACHINES

– KIT-STO-825

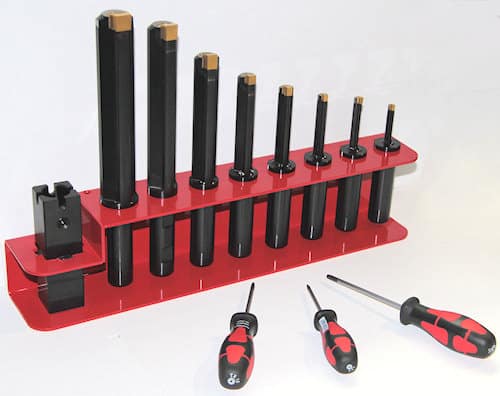

Kit of 8 REV insert holder tools for making keyways on the slotting machine.
It consists of:
• n° 8 insert holder tools with a diameter of 25 mm (UT-03,04,05,06,08,10,12,14/16)
• n° 1 square adapter AD-35
• n° 18 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 4 regrinders (RF-1, RF-2, RF-3, RF-4)
• n° 1 tool holder base in painted steel
• n ° 3 Torx screwdrivers (T08, T15, T20).

– KIT-STO-825-L
Kit of 8 REV insert holder tools for making keyways on the slotting machine.
It consists of:
• n° 8 insert holder tools long series diameter 25 mm (UT-03,04,05,06,08,10,12,14/16)
• n° 1 AD-35 square adapter
• n° 18 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 4 regrinders (RF-1, RF-2, RF-3, RF-4)
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).

– KIT-STO-832
Kit of 8 REV insert holder tools for making keyways on the slotting machine.
It consists of:
• 8 insert holder tools with a diameter of 32 mm (UT-03,04,05,06,08,10,12,14/16)
• 1 AD-40 square adapter
• 18 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 4 regrinders (RF-1, RF-2, RF-3, RF-4)
• n° 1 tool holder base in painted steel
• n ° 3 Torx screwdrivers (T08, T15, T20).

– KIT-STO-832-L
Kit of 8 REV insert holder tools for making keyways on the slotting machine.
It consists of:
• n° 8 insert holder tools long series diameter 32 mm (UT-03,04,05,06,08,10,12,14/16)
• n° 1 AD-40 square adapter
• n° 18 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 4 regrinders (RF-1, RF-2, RF-3, RF-4)
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).
