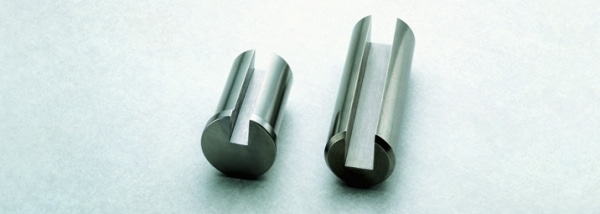

BUSHINGS FOR KEYWAY REV

KEYWAY BUSHINGS

The keyway bushings allow the operator to use each keyway broaches on a variety of hole sizes.

Both the bushings and the broaches are marked with a letter indicating the thickness of the opening of the bush and of the keyway broach.

For a correct use is necessary use the broach with the appropriate bushings, indicated by the same letter.

For example: type A bushings with type A broaches, type B bushings with type B broaches, etc…

It is possible to make special bushings based on customer’s request.

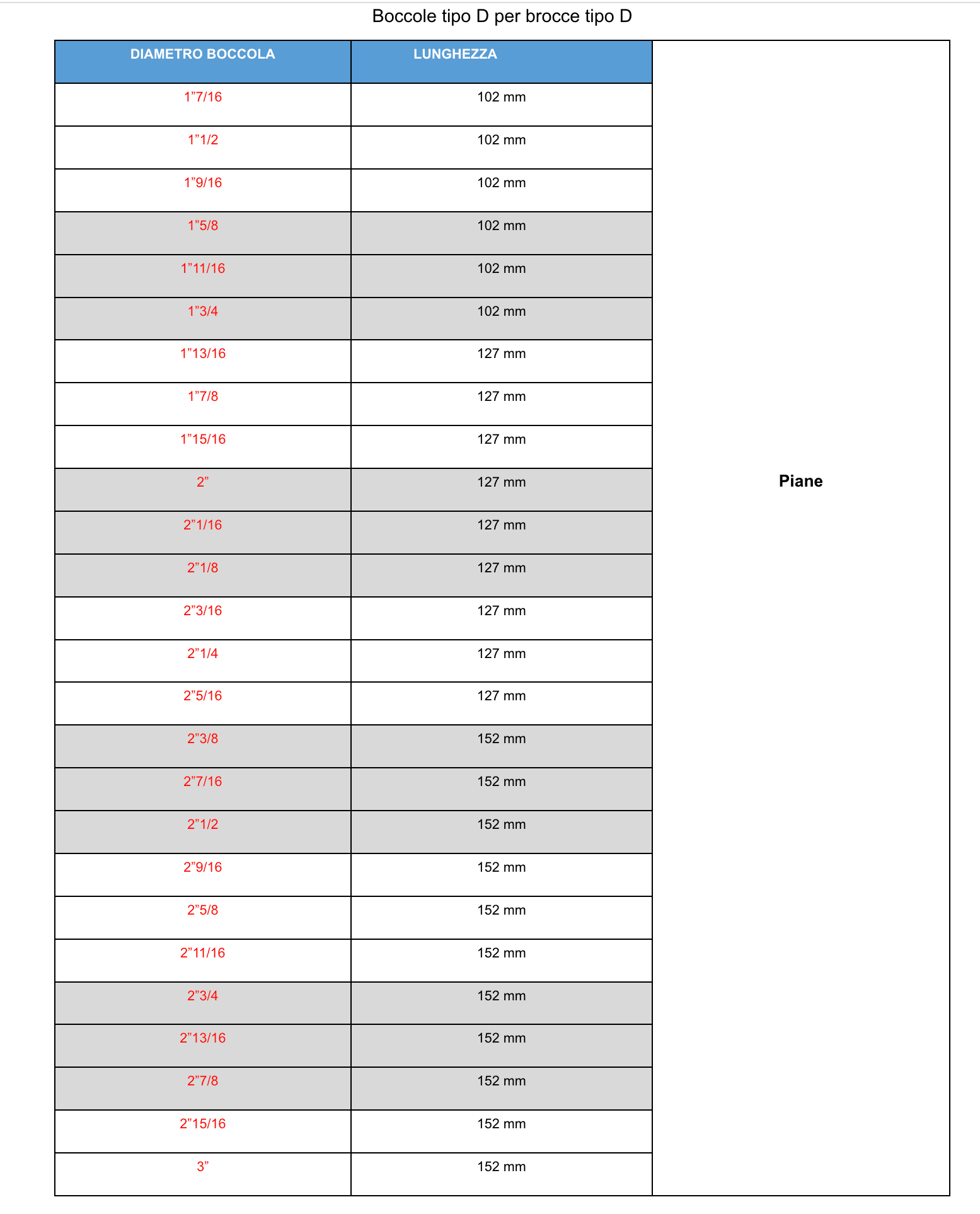

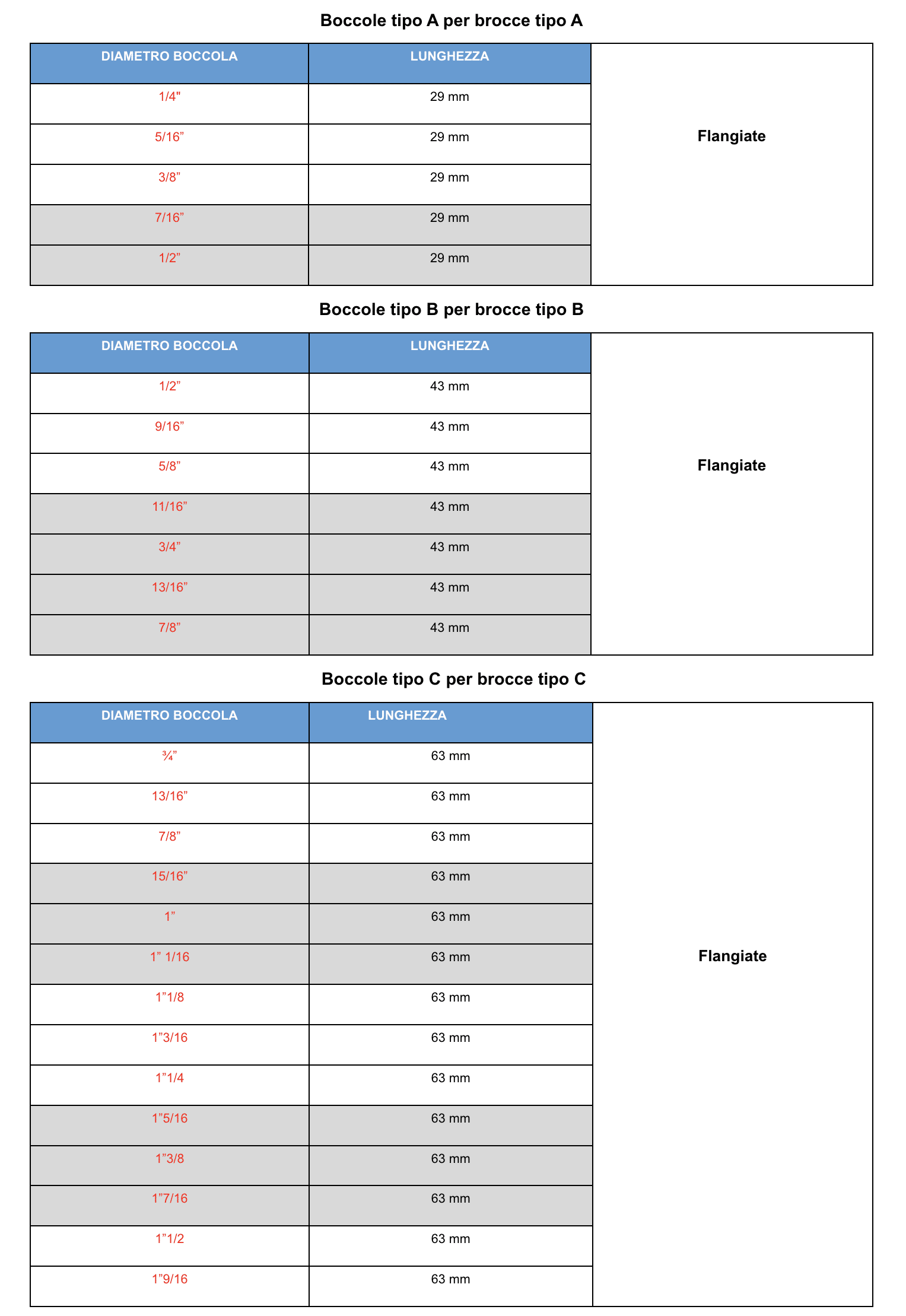

KEYWAY BUSHINGS – INCH SIZES

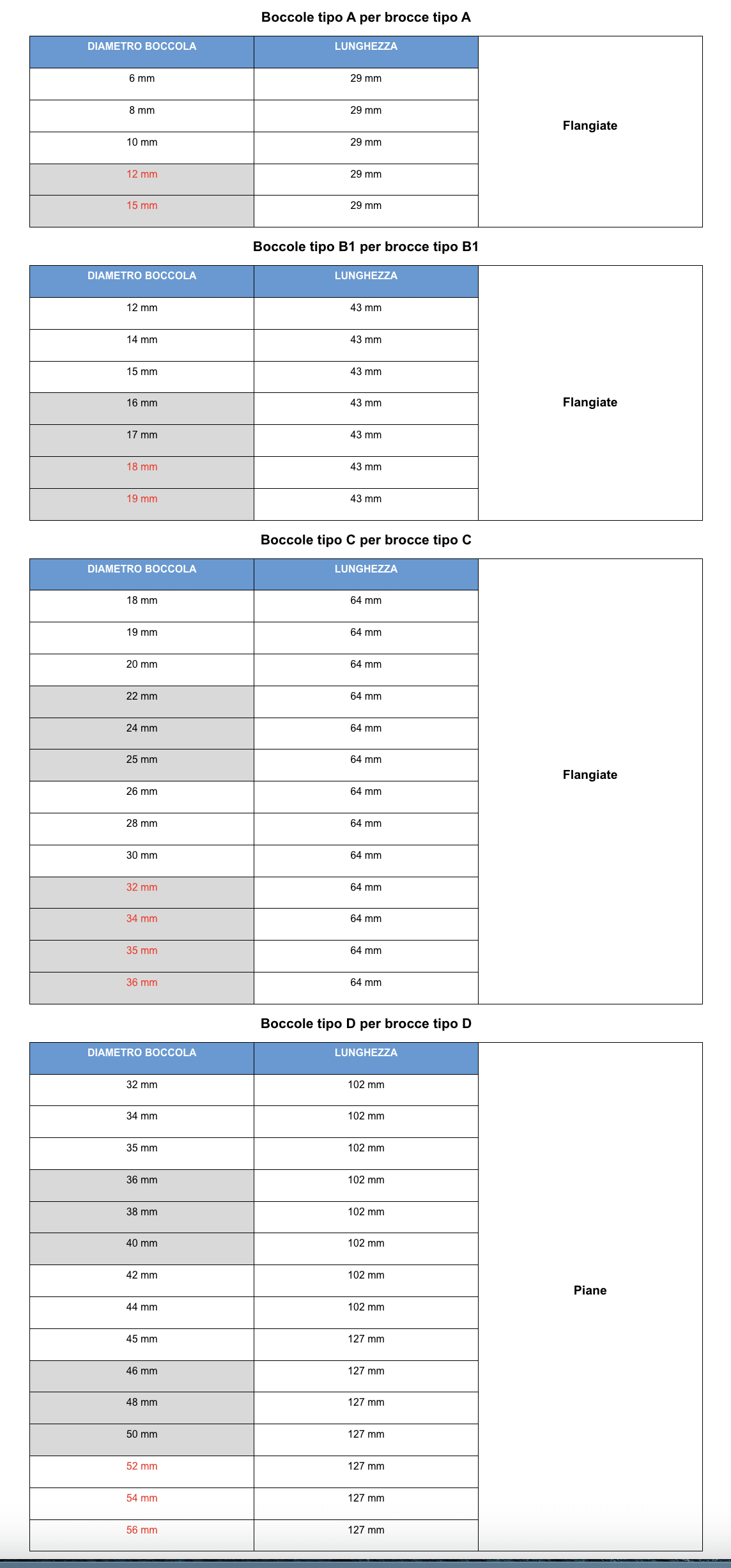

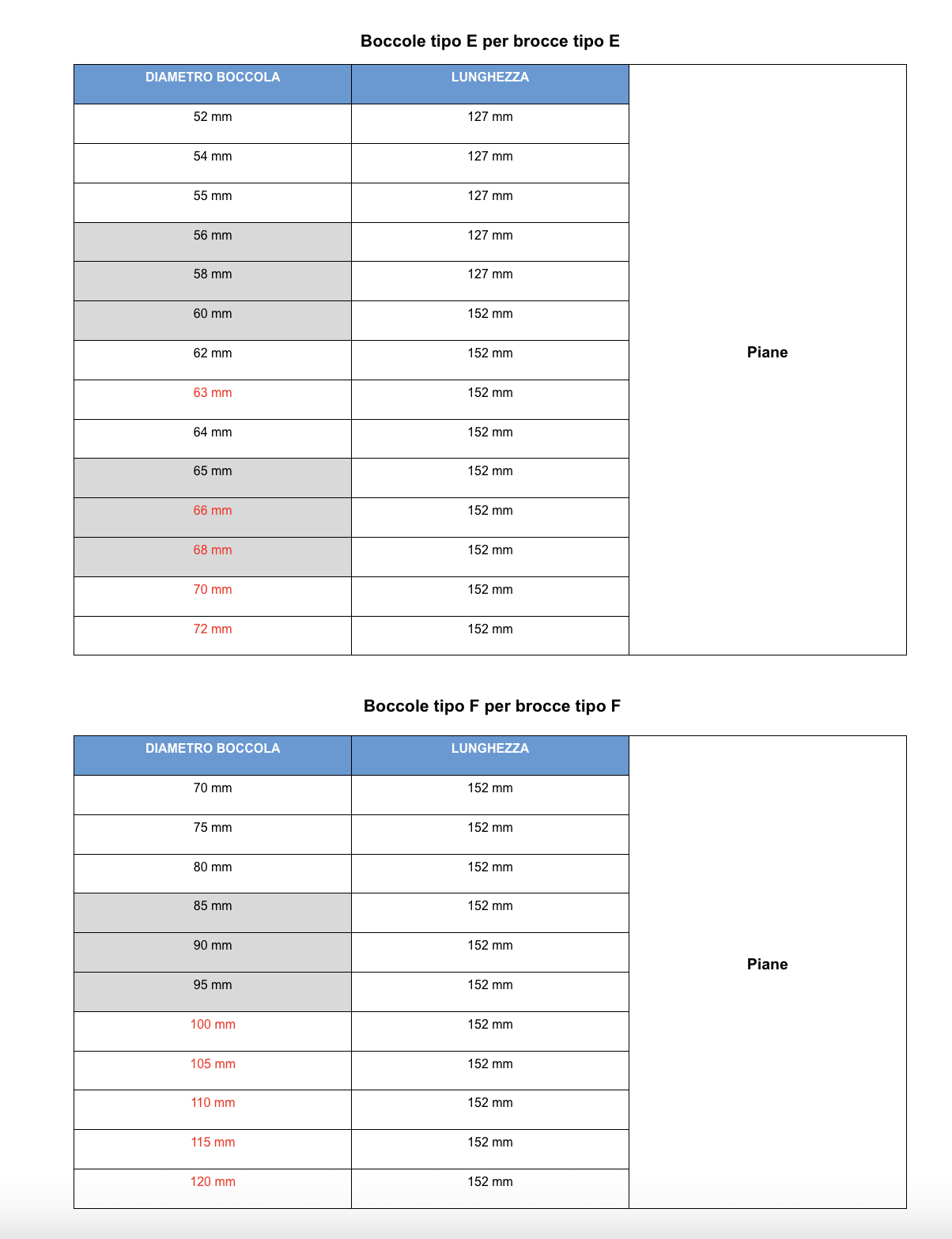

KEYWAY BUSHINGS – METRIC SIZES
