INSERTS FOR HEXAGONS REV
This series of REV tools was developed to execute internal hexagons.
It offers the following advantages: absolute concentricity, the possibility of correcting the required measurement, machining speed, extreme economising.

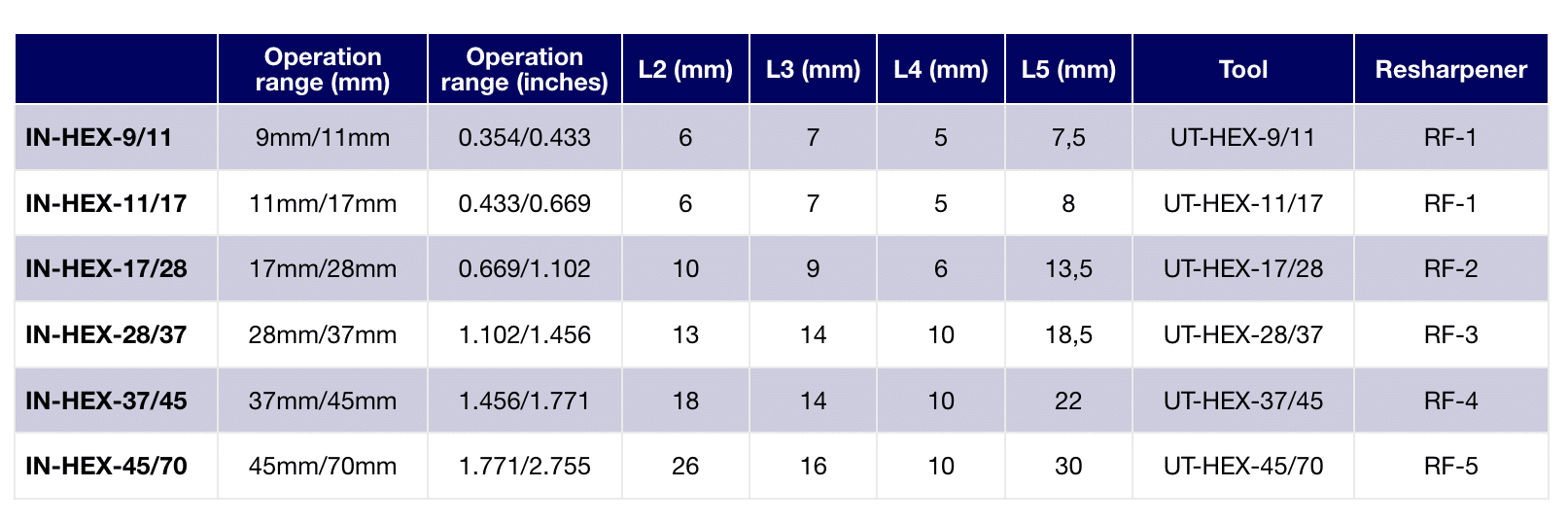

Every insert size in this line is able to execute various hexagon sizes, which makes using REV tools for hexagons very economically convenient.

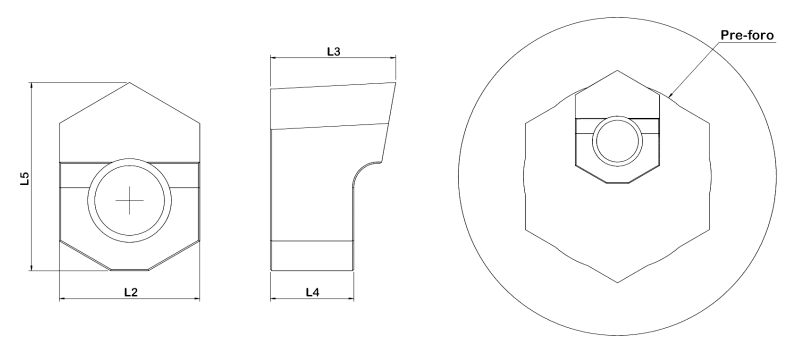

To execute internal hexagonal holes it is necessary to cut a pre-hole with a diameter based on the following formula:
PRE-HOLE DIAMETER = HEXAGON THICKNESS X 1.020
For example, for a hexagon with a thickness of 10 mm, the diameter of the pre-hole will be:
10 mm x 1.020 = 10.20 mm
To execute completely hexagonal holes, the customer will need to make a specific request, and will be supplied with an ad hoc tool.
In addition to this, in many other cases, in order to obtain a perfectly appropriate tool for the type of hexagonal hole that needs to be executed, it will be possible to produce a special tool that meets the customer’s specifications.
