INSERTS FOR SQUARES REV
This series of REV tools was developed to execute internal squares.
It offers the following advantages: absolute concentricity, the possibility of correcting the required measurement, machining speed, extreme economising.

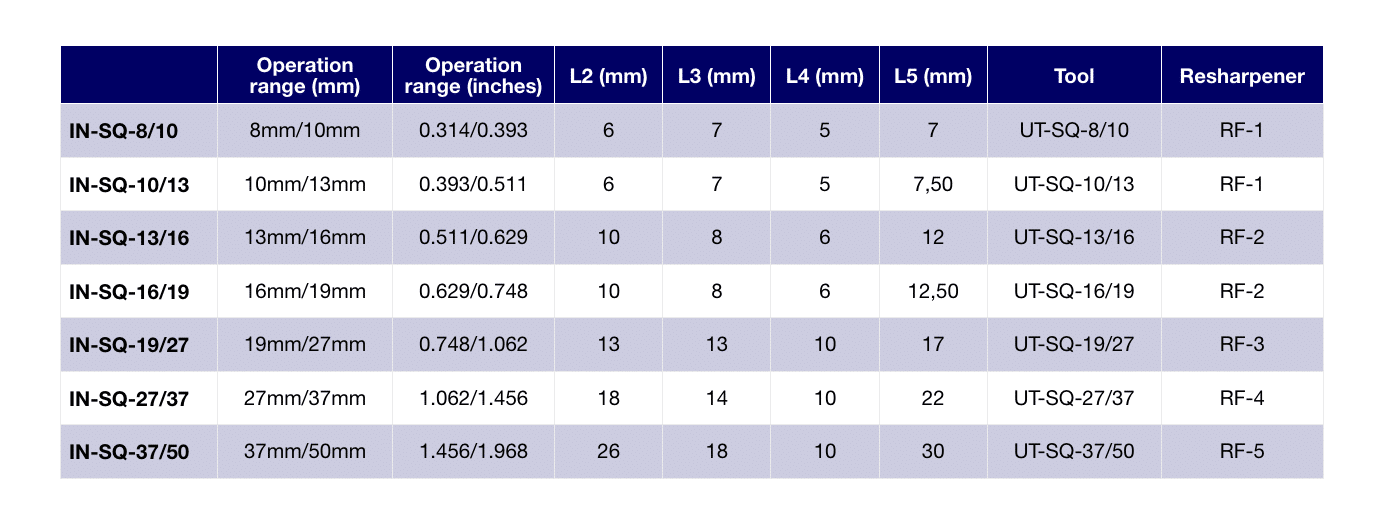

Every insert size in this line is able to execute various square sizes, which makes using REV tools for squares very economically convenient.

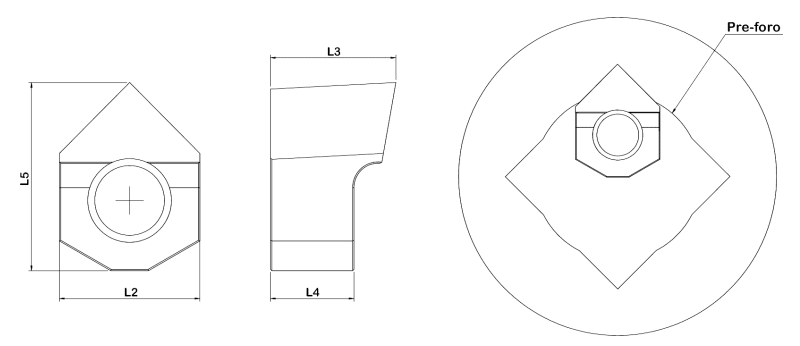

To execute internal square holes it is necessary to cut a pre-hole with a diameter based on the following formula:
PRE-HOLE DIAMETER = SQUARE THICKNESS X 1.050
For example, for a square with a thickness of 10 mm, the diameter of the pre-hole will be:
10 mm x 1.050 = 10.50 mm
To execute completely square holes, the customer will need to make a specific request, and will be supplied with an ad hoc tool.
In addition to this, in many other cases, in order to obtain a perfectly appropriate tool for the type of square hole that needs to be executed, it will be possible to produce a special tool that meets the customer’s specifications.
