BROACHING WITH ONE-PASS KEYWAY BROACHES

KEYWAY ONE-PASS BROACHES

The production broaches are specifically designed for big production runs of identical bores since they can offer the maximum speed and precision.

This kind of broach is self-supporting and, therefore, neither shims nor bushings are necessary.

A special chamfering feature is possible upon request.

The production broaches are available with TIN or TIALN coating.

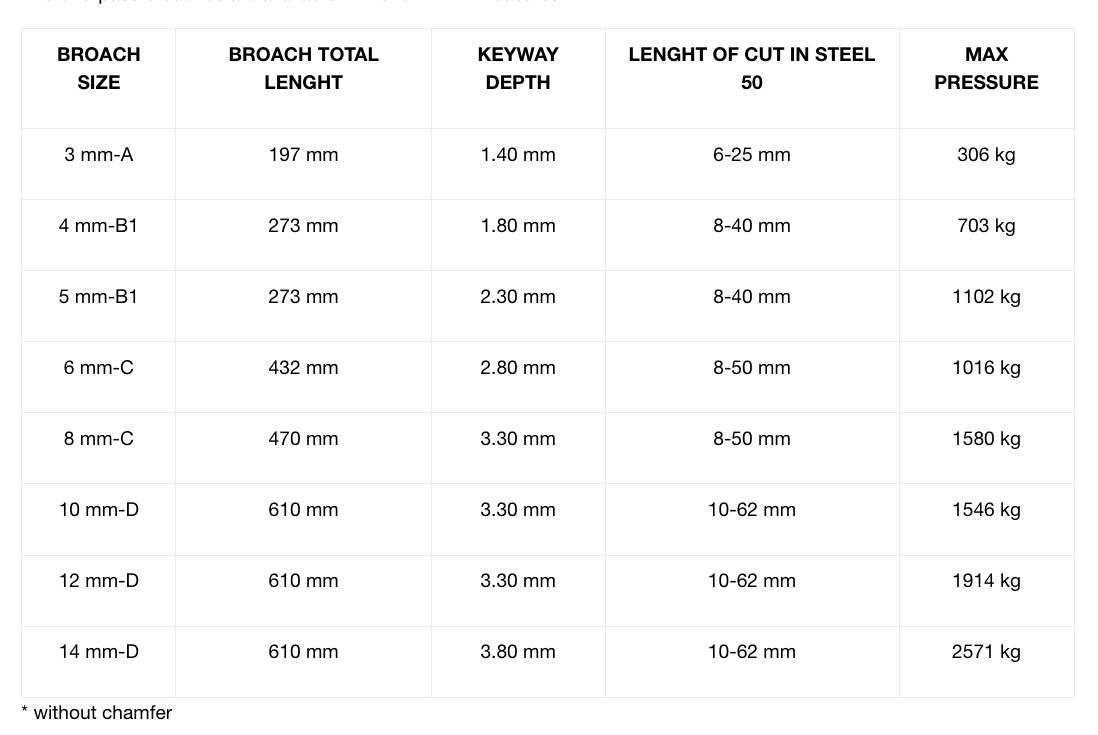

KEYWAY ONE-PASS BROACHES – METRIC SIZES

Shoulders and back are formground to fit the bore.
These 3 supporting surfaces extend the full length of the broach.

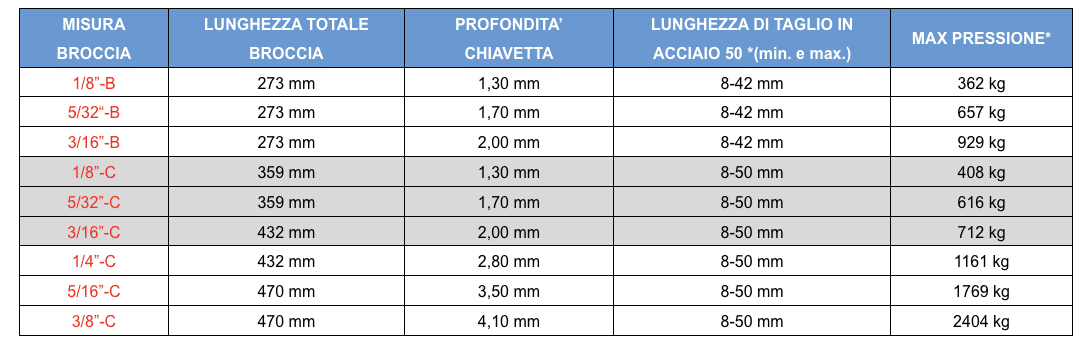

KEYWAY ONE-PASS BROACHES – INCH SIZES
