ALIGNMENT PLATES FOR MILLING MACHINES (PN)
Alignment plates are used to assure the correct concentricity between the tools and the piece on a machining center.

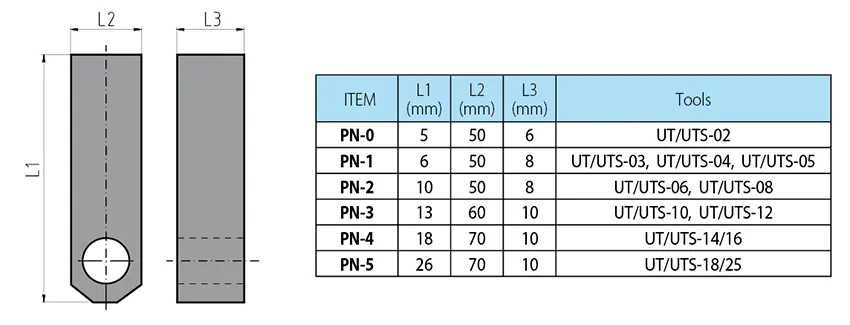

The alignment plate is installed on the holder in the insert-seat; thanks to its shape, it is possible to check the correct alignment between the BT/BTA and the reference axes, with a simple gauge or a comparator. Alignment plates are available in five different sizes, each suitable for one particular insert holder.
